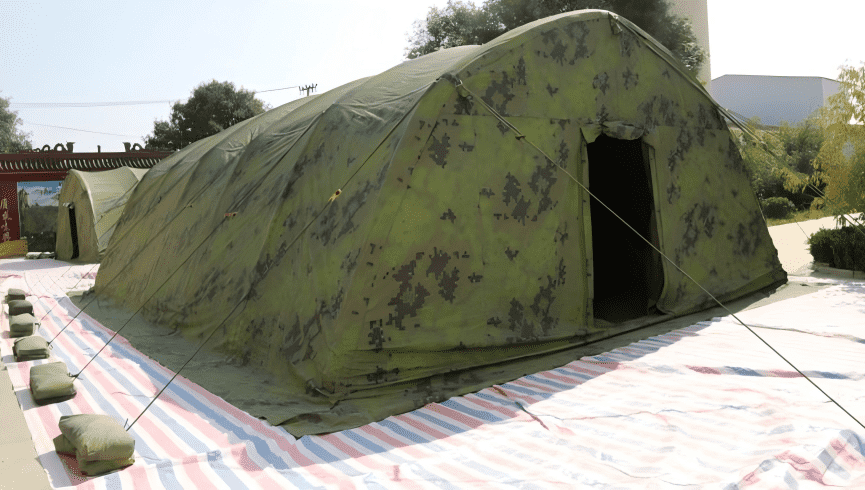

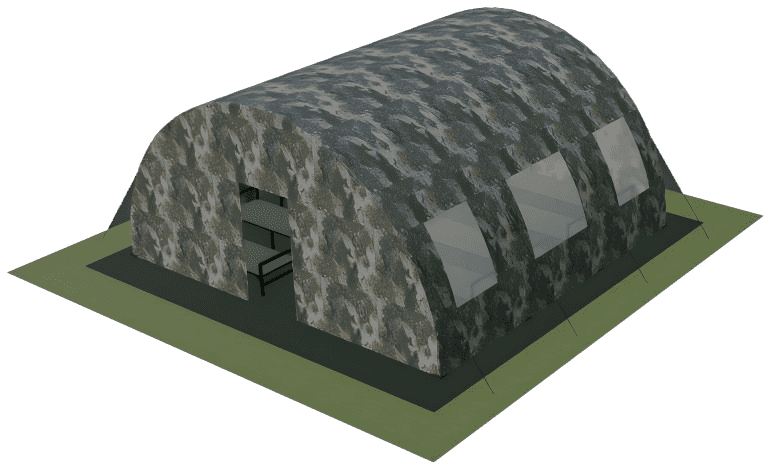

60m2 Inflatable Tent (020101);

Length 10m*Width 6m*Height 3m;

Basic assemble time ≤ 20 min (5 persons); disassemble time ≤

15 min (5 persons)

Physical and mechanical properties of gas rib

Penetration resistance: ≥1000N;

Environmental adaptation

1）Temperature resistance: working temperature: -43℃~+50℃;storage temperature: -45℃~+70℃.

2）Waterproof: rainfall intensity ≥2mm/min, 3h no leakage,5h no drip;

3）Salt spray resistance: No discoloration, powdering, or cracking after 150 hours;It can resist the impact of salt spray corrosion environmental conditions in coastal areas of China.

4) Resistance to moisture and heat: ≤ 2 levels.

5) Load resistance: can withstand 100mm of light snow.

6) Wind resistance: able to withstand strong winds with a wind speed of ≥ 20.7m/s (level 8)

Reliability

One-time inflation can maintain working pressure for ≥ 60 days,with a service life of no less than 5 years;

Maintainability

Base-level maintenance ≤ 0.5h.

Supportability

1) Equipped with professional maintenance tools;

2) All kinds of interfaces can be reserved.

30m2 Inflatable Tent (020102);

Length 6m*Width 6m*Height 3m;

Basic assemble time ≤ 15 min (4 persons); disassemble time ≤

10 min (4 persons)
