Non-metallic Bulletproof Shield（050503）

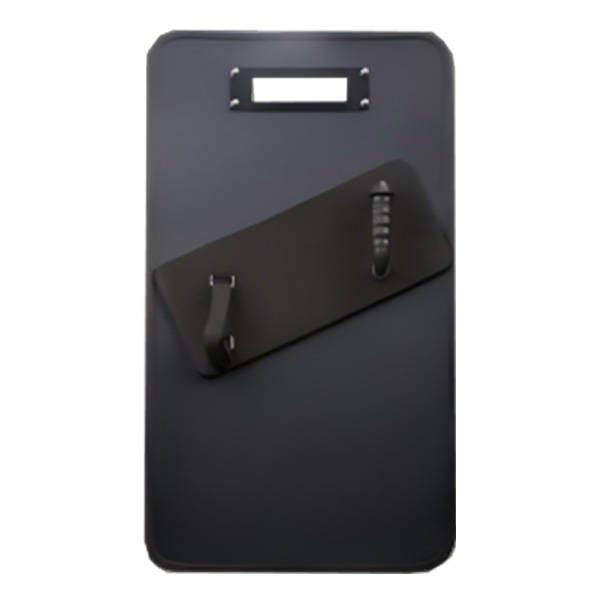

The shield body of the non-metallic bulletproof shield is made of high-quality ultra-high molecular weight polyethylene fiber unidirectional fabric, laminated and compressed, and consists of the shield body, observation window, and handle. The back of the shield body has a grip and a shoulder strap. The handle is made of soft belt or hard structure, and the connection structure between the handle and the shield can withstand a tensile force of 600N without breaking.

The product has passed the ISO 9001:2015 quality management system certification and strict inspection by the China Ordnance Equipment Special Product Quality Supervision and Inspection Center.

Product Information

Product Model:

FDP3FS-GD

Major Materials:

High-performance polyethylene composite material

Performance Features:

Characterized by high consistency in quality, excellent stability in bulletproof performance, lightweight and flexible, and overall superior performance.

Shield Specifications:

Dimensions: Length 900mm × Width 500mm; Thickness: 8.5mm

Product Weight:

5.48 kg

Protection Area:

0.41 m2

Observation Window:

Dimensions: Width 160mm × Height 60mm;

Light Transmission Rate: 78.6%;

Bulletproof Level: Level Ⅲ.

Protection Level:

Complies with the relevant requirements for Level 3 handheld non-metallic bulletproof shields in GA 423-2015 Police ballistic shields.
