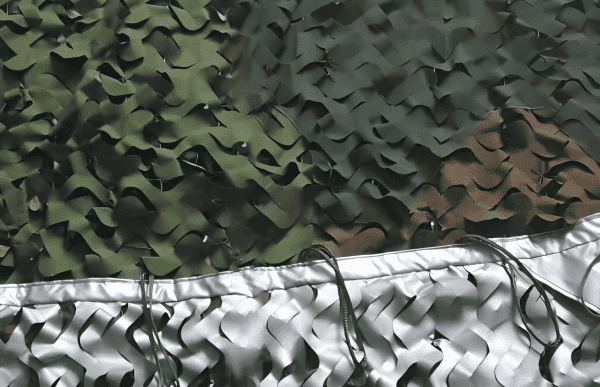

Structure: reinforced skeleton mesh + cut flower decorative piece

Camouflage Type: mainly including woodland type camouflage, desert type camouflage, snow type camouflage, also can be customized.

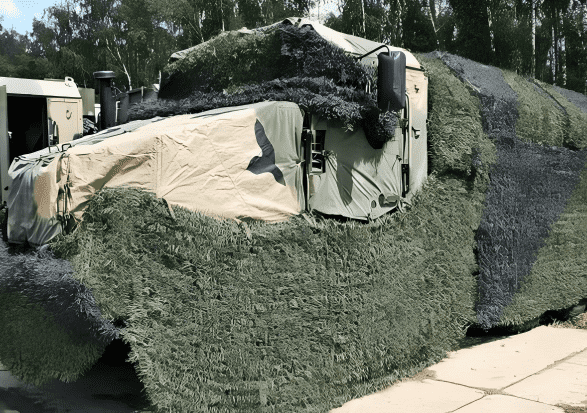

Application Scenarios: It is mainly used for radar band target feature signal control of main battle tanks, armored vehicles, self-propelled artillery equipment and other ground weaponry to counter the detection of millimeter-wave radar and the strike of centimeter-wave detection radar.

Technical Parameters

Weight：≤500g/m²

Physical & Mechanical Properties

Rupture strength: Warp ≥ 500N, Weft ≥ 500N

Tear strength: Warp≥ 50N, Weft≥ 50N

 Flame retardant properties

Re-ignition time no more than 10s

Camouflage performance

1) Protection band: 1-18 GHz;

2) Radar wave transmittance: the average radar wave transmittance in the normal direction is not more than 50%;

3) Bi-directional transmission attenuation Bi-directional transmission attenuation is not less than 4dB in the 1-4GHz band; not less than 4dB in the 4-12GHz band; and not less than 10dB in the 12-18GHz band;

Environmental adaptation

The color difference before and after 500h artificial climate aging is less than 3 levels;

Life span

1) A storage lifespan is not less than 10 years;

2) A cumulative field life span is not less than 5 years.
