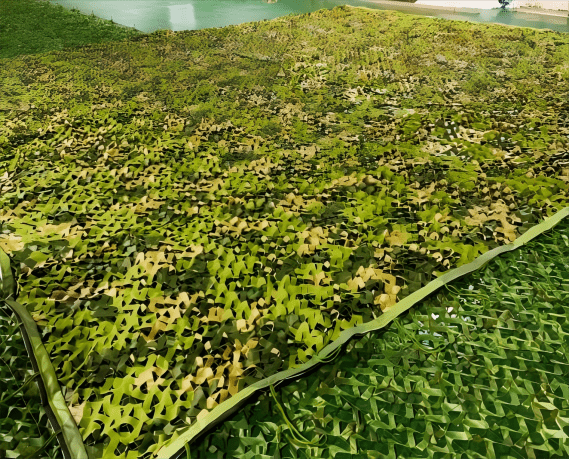

Structure: double-layer composite structure, anti-hooking bottom net + composite cut flower decorative piece

Camouflage Type: mainly including woodland type camouflage, desert type camouflage, snow type camouflage, also can be customized

Application Scenarios: Mainly used for artillery, missile launchers and other ground maneuvering equipment and command and protection works, positions and other fixed military facilities target camouflage.

Technical Parameters

Weight

≤500g/m²

Physical & Mechanical Properties

Rupture strength: Warp ≥ 500N, Weft ≥ 500N

Tear strength: Warp≥ 50N, Weft≥ 50N

Flame retardant properties

Re-ignition time no more than 10s.

Camouflage performance

1) Protection band: including optical, mid- and far-infrared, and radar bands;

2) Fulfill the camouflage protection performance index parameters of anti-optical, mid- and far-infrared, and radar reconnaissance camouflage nets.

3) Gloss: each camouflage color 60 ° gloss is not greater than 5 gloss units;

4) Coating film emissivity: low emissivity ≤ 0.65, medium emissivity ≤ 0.75, high emissivity ≥ 0.90;

5) Radar wave reflection attenuation: (2.6~40GHz) bandwidth better than -10dB, not less than 90%;

Environmental adaptation

The color difference before and after 500h artificial climate aging is less than 3 levels;

Life span

1) A storage lifespan is not less than 10 years;

2) A cumulative field lifespan is not less than 5 years.
